I finally started putting some real time into experimentation with the Papervision3D engine, more specifically in regards to workflow with Maya. In my initial tests, all of my model geometry was displaying pretty well, however my mental ray baked textures were all scrambled. Many hours of testing later, I discovered that the issue was the fact that I had multiple UV sets for my texture.

What this looks like in the Collada data:

I didn't think this would be an issue because the set ID is referenced in the bind vertex input node as seen below:

I'm going to investigate the 'Collada.as' object sometime in the near future to see how easy it would be to integrate support for multiple sets, however it really isn't a big deal because this issue can be easily resolved in Maya. If you are working with a custom UV set, follow these steps before exporting your Collada data:

1.) Make sure the custom UV set is currently applied to your model.
2.) Under the polygon menu set, go to Create UVs > Copy UVs to UV Set > 'default set name' (should be 'map1' unless you changed the name).
3.) Delete all UV maps except for the default UV set.

The reason it is necessary to copy the UVs from the custom set over to the default set is because you cannot delete the default set.

Now when you export, your texture should show up mapped correctly in Flash.

One of the hot new features in Flash CS3 is the ability to generate code from animations created on the timeline. I was especially curious to see how they approached this. It turns out that the approach is very similar to that of my virtual timeline animation system, however they brilliantly use XML to map out the animation.

This was a smart move on their part, as it allows for much more flexibility in many aspects. I'm going to start refactoring my systems to optionally comsume such data as well, in hopes that they left some room for improvement. Good stuff though; I can't wait to dig in.

This tutorial goes hand in hand with the Apollo template for FlashDevelop that I posted a few days ago.

What you will need to get setup:

- The latest FlashDevelop build (2.0.2)
- ANT
- Flex 2 SDK
- Apollo SDK and runtime

Ok, first things first - make sure you have downloaded each of the above and extracted their files into the directories of your liking.

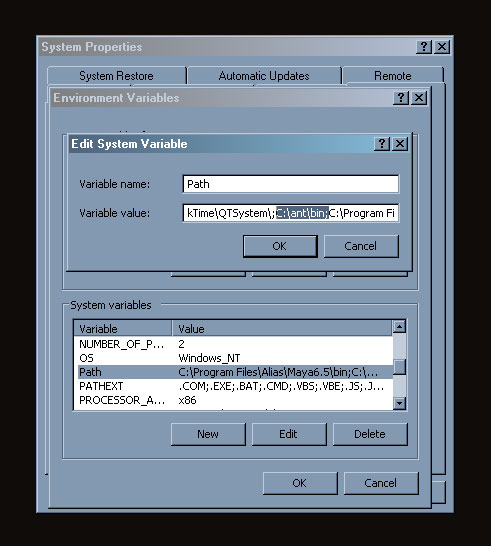

For ANT, you will need to add a path to your environment variables so that it can be accessed without writing out the path in the commandline. To do this, you will need to right click on 'My Computer' and select 'Properties'. Click the 'Advanced' tab at the top, then click the 'Environment Variables' button at the bottom of the window. In the bottom panel, there should be a variable called 'Path'. Select it and click the 'Edit' button. Add the path to the directory where you installed ANT plus '\bin'. If you added it to the end of the text field, make sure and add a semi-colon to the end of the previous path. This is similar to what you should see:

Next, you will need to create a way to run your ANT build from FlashDevelop. Inside the FlashDevelop application folder, there is a folder called 'Settings'. Inside the 'Settings' folder you will find all of the XML files for customizing FlashDevelop. To add a button to the tool bar for ANT, open the 'ToolBar.xml' file. Here is what your new button node should look like:

Note that you can set any shortcut you please for this action, however you should check the program settings to make sure that you aren't overwritting one that already exists. You can always change the FlashDevelop shortcuts around as you see fit.

Ok, your ANT integration with FlashDevelop is ready to go. Now you need to open up the 'build.properties' file that is located in my Apollo template. Towards the bottom of the file, you will see some settings for the Flex 2 SDK and Apollo SDK install paths that look like these:

Go ahead and update these paths with the paths that you actually used for these applications. That's basically it! Now each time you create a new project, the first thing you should do is go into the 'build.properties' file for that project and update the settings at the top for the AIR file name, documentation name, output file, etc.

Also note that it is in this file that you can toggle the launch method to either test or publish your AIR file as seen below.

What actually happens now when you click the ANT button you added (or use it's associated shortcut key) is ANT gets called and uses the 'build.xml' file in the project directory to perform a sequence of tasks for you, thus automating your build process. To be able to click a button and get your project compiled to a SWF, packaged as an AIR file, then documentation generated for all of your source is a beautiful thing; that is why the template is so useful.

Hopefully I didn't miss anything. If you have any questions, post away.

Wow.

Adobe has been boasting that this is their biggest and best release ever and I must say that they did in fact deliver. Hats off to the fine people at Adobe; you guys did an awesome job. As they said during the press conference in New York today, the Master Collection is comprised of an estimated 80 million lines of code. Crazy.

So now that most of their main products are all on the same product cycle, there is a lot of new stuff to check out. I'd like to quickly review my favorite features in some of the applications.

After Effects

- The ability to import vanish point data from Photoshop to create 3D data. Amazing.
- The puppet tool; love it.

Dreamweaver

- Browser compatibility checker. Very nice.

Encore

- Schematic view for creating node-based relationships between content and navigation.
- I've always been a DVD Studio Pro fan, but wow... Encore to SWF?

Flash

- Photoshop PSD's in Flash? You guys are on fire.
- Timeline tweens that generate code. Awesome.
- Exporting SWF to Quicktime including scipted animation; yessss!
- SWF meta data entry; nice touch.

InDesign

- Placing multiple images by simply clicking to drop from the stack. Very slick.

Photoshop Extended

- Seeking through video footage, stopping on a frame and editing it right there and then. What?!

There is much, much more new stuff to explore on the Adobe site, so head on over there and check out all of the product new feature demos if you haven't already.

On a final note, the Master Collection won't be shipping until July, unlike the rest of the bundles which ship in April. What's cool though is that Adobe says you can purchase any of the bundles now and then get the Master Collection in July by paying the difference. I think that's the way to go because the Master Collection is definitely the best deal.

[Update April 17, 2007]
For those of you who grabbed the latest update, the changes I made to the 'build.properties' file didn't get included somehow.

You will need to either add the above code to the 'build.properties' file or re-download the template below. Sorry about this.
[/Update]

[Update April 14, 2007]
A few major updates have been made to the template and are reflected in the download below. Information about these changes can be found here.
[/Update]

[Update March 28, 2007]
I posted a tutorial to go along with this template that explains the setup of FlashDevelop and ANT, as well as configuring this template.
[/Update]

If you are a FlashDevelop user who is interested in authoring Apollo applications, here is something very useful for you. The project is setup for ANT-based compiling and you can easily toggle a property to switch between testing and publishing your final AIR file. Upon packaging the AIR file, project documentation is automatically generated for you into the 'docs' folder using ASDoc. There is also a library FLA and SWF file ready to go in the 'ui' folder for you to place library items and then embed them into your application during compile.

What you will need to use this template:

- The latest FlashDevelop build (2.0.2)
- ANT
- Flex 2 SDK
- Apollo SDK and runtime

To install:

Unzip and place the '07 Apollo Project' folder into the 'Data\ProjectTemplates' directory in your FlashDevelop application folder.

NOTE:
Make sure you update your installation paths in the template's build properties file before using the template.

Hopefully some of you will find this template useful. If you have any questions, suggestions, or feedback, certainly let me know.
